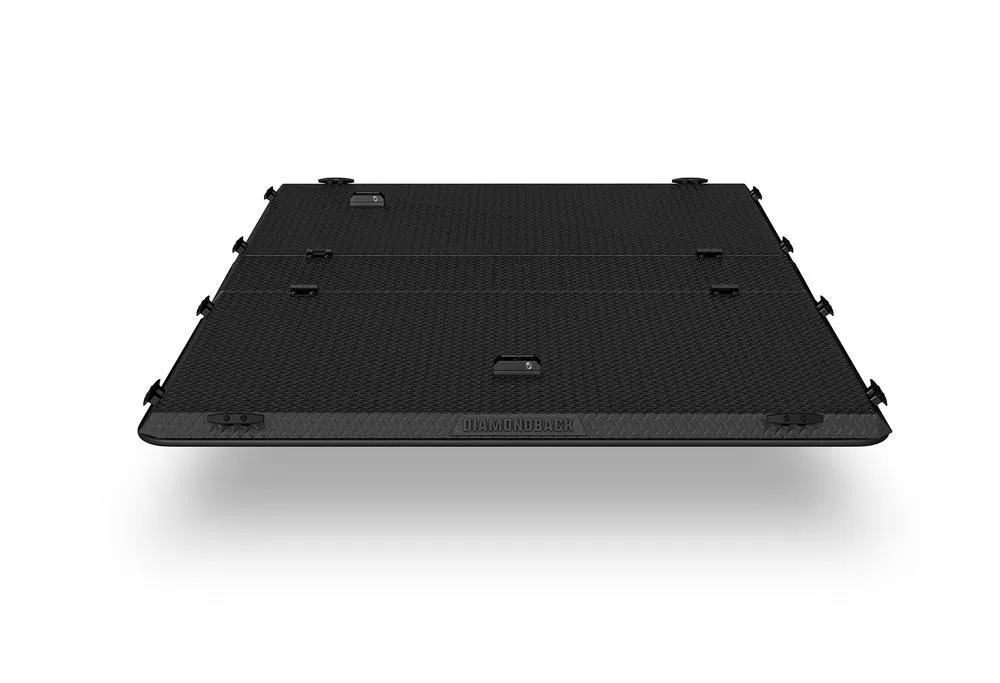

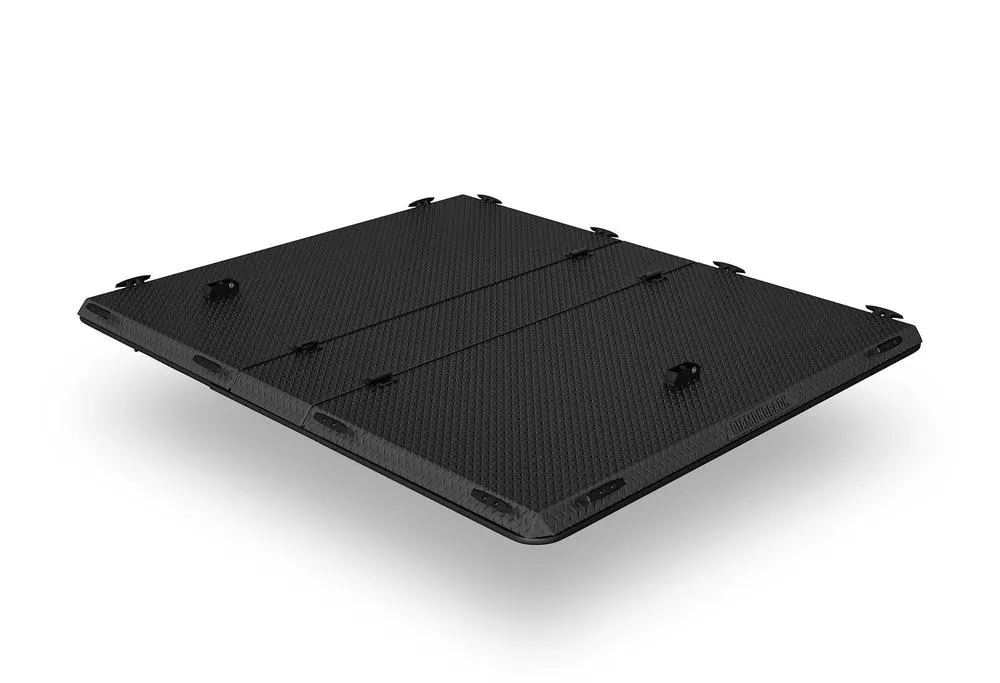

A workhorse so you don’t have to be.

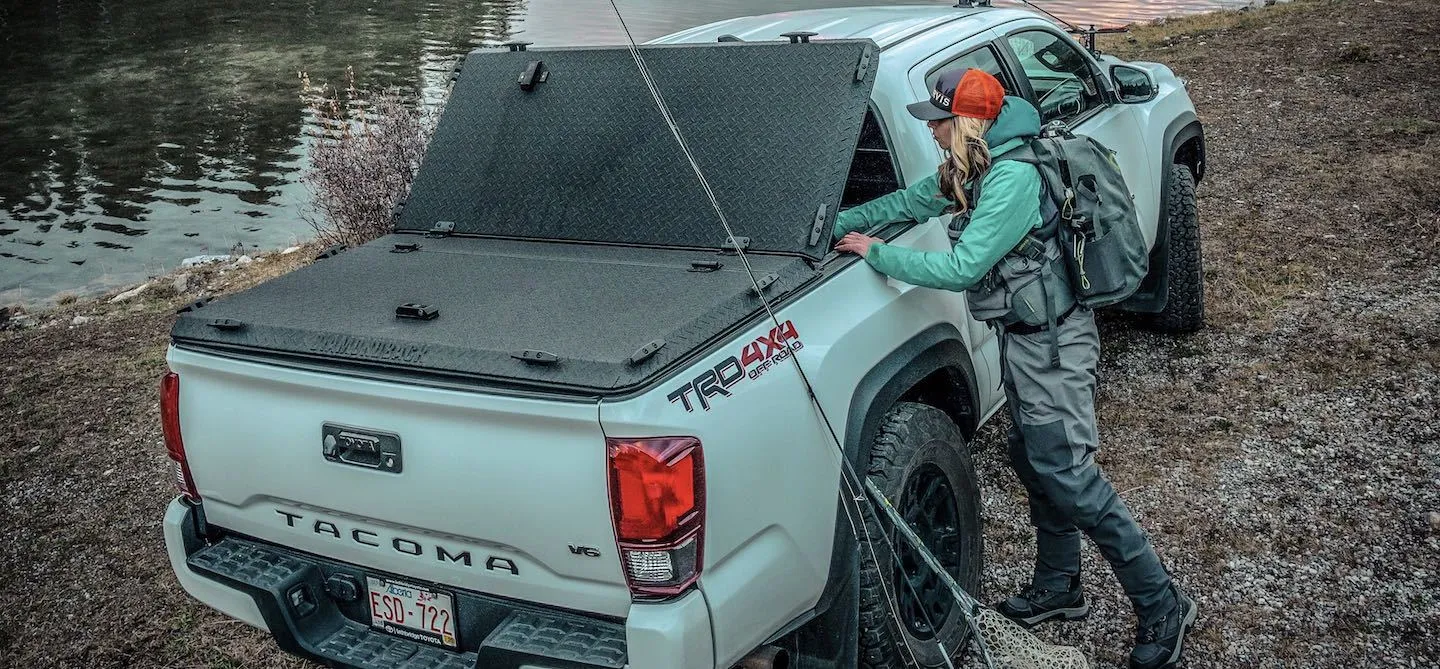

For all of those that want a truck bed cover for work or play, the DiamondBack HD is the top-of-the-line heavy duty cover that helps you do more with your truck. Perfect for truck-owning avid sportsmen, outdoor enthusiasts, and weekend project warriors.

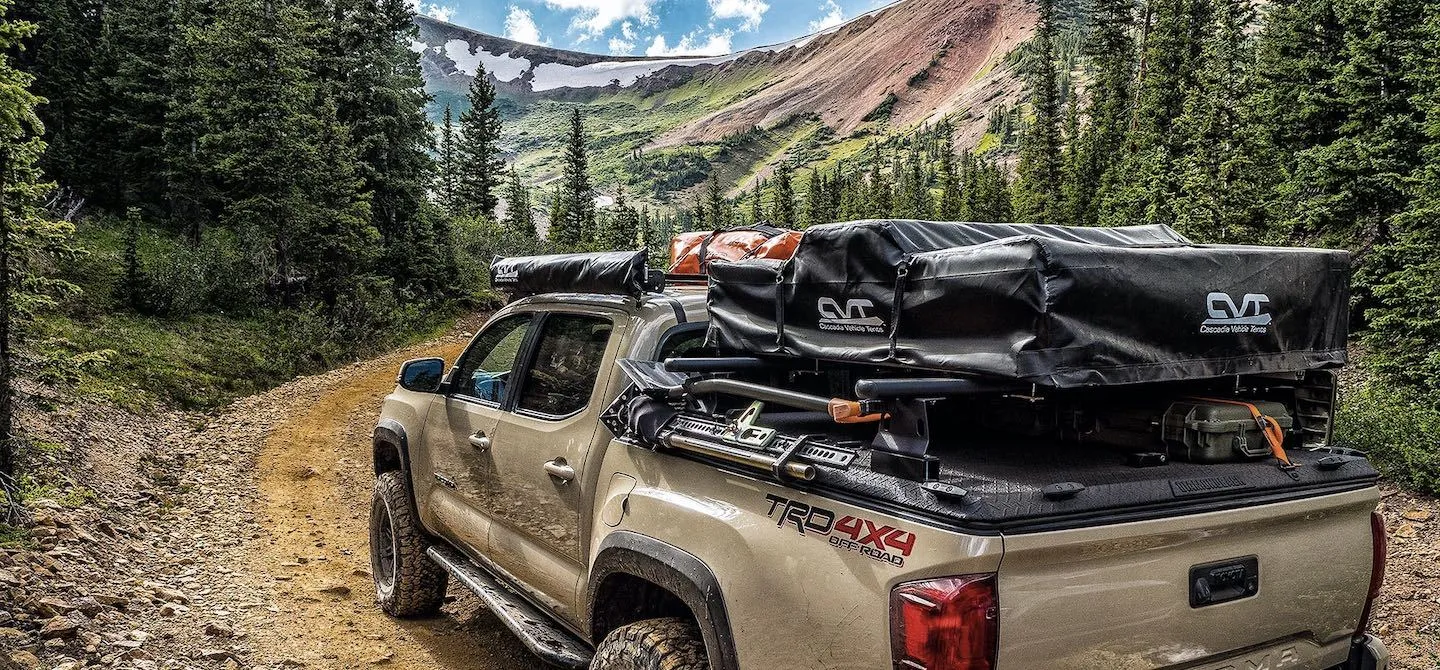

With a 1600-lb hauling capacity, where there’s a DiamondBack HD, there’s a way. It’s built really, really strong making it the most capable hard truck bed cover ever.
- Haul up to 1,600 lbs. on top

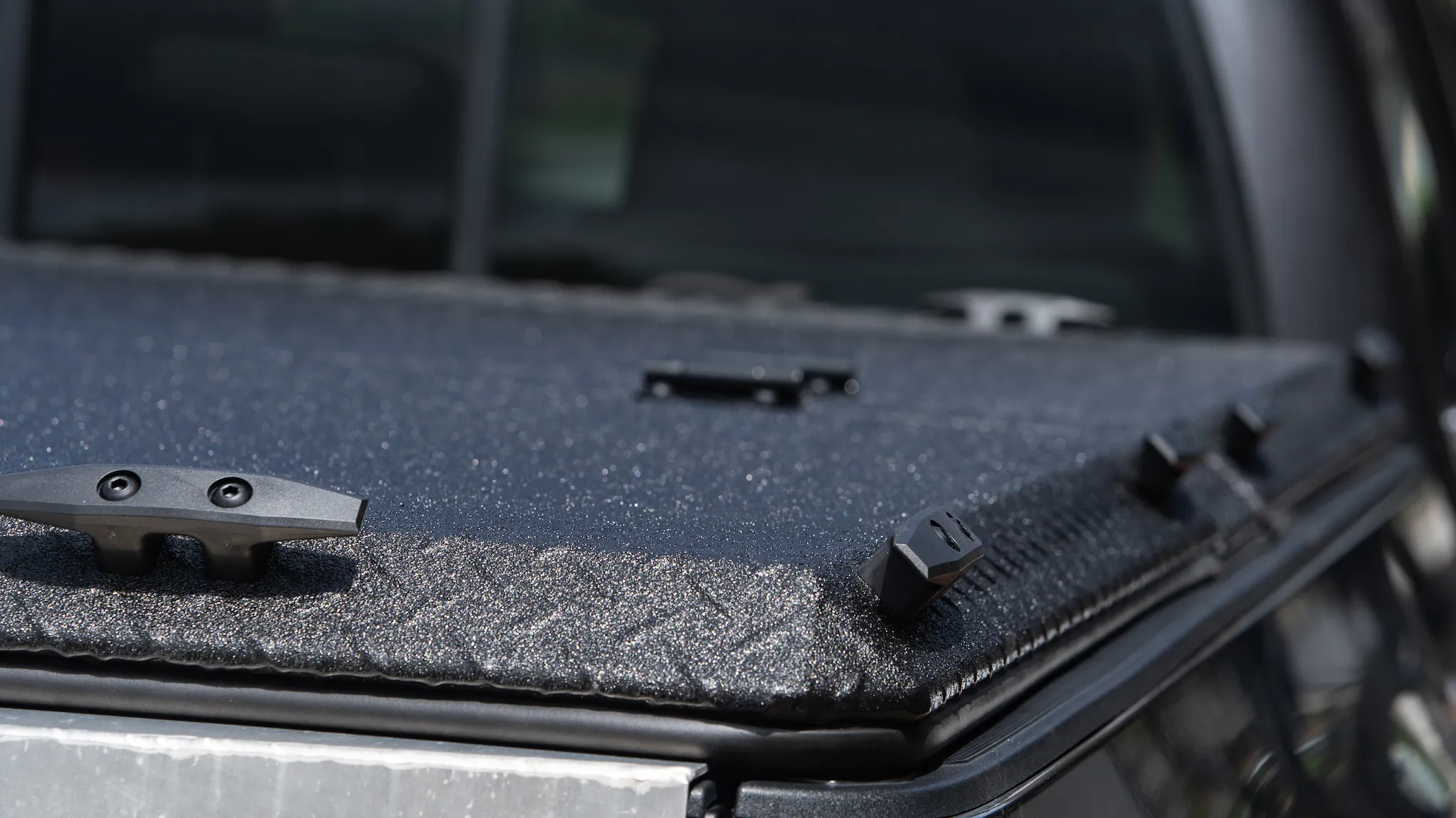

- 12 tie-down cleats pre-installed
- Heavy duty diamond plate aluminum

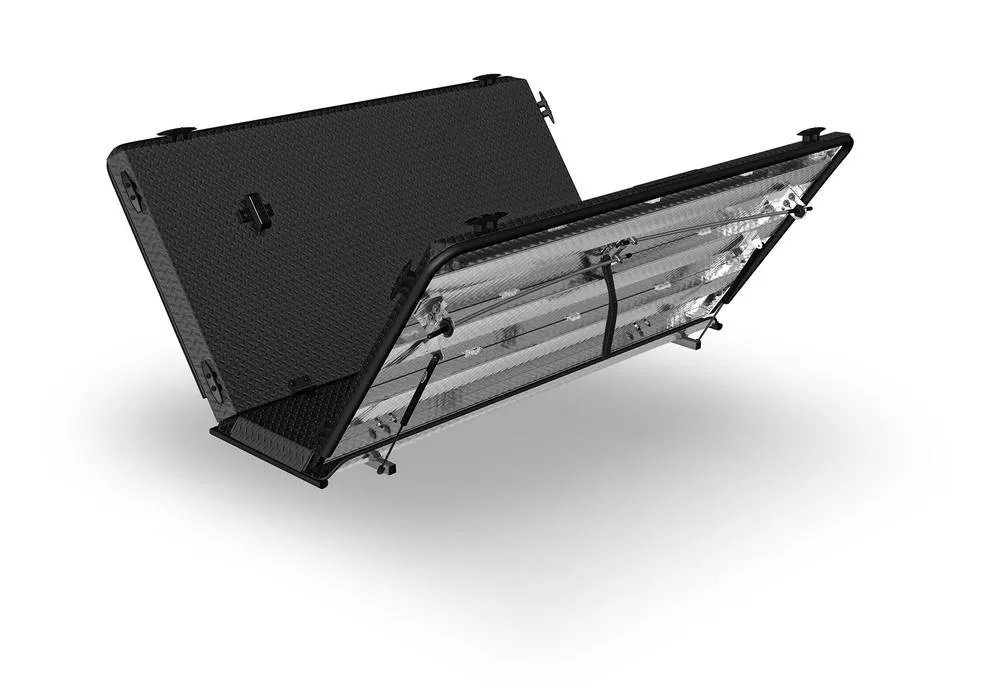

- Structural support members
A thick EPDM compression gasket runs along the perimeter of the cover to create a barrier to water, snow, or ice, keeping your cargo dry.
- EPDM perimeter gasket
- Gutter-protected hinge points
- Side-facing key cylinders
- Stainless exterior hardware
Rugged, die-cast zinc lock handles on the access panels of a DiamondBack keep your gear secure by actuating 3/8" deadbolt-style rods directly under the bed rails of your truck.
- Deadbolt-style lock system
- Die-cast zinc lock handles
- 2 key locks
- Tight and secure fit
Specs:
Hauling Capacity: 1,600 lbs
Dimensions:

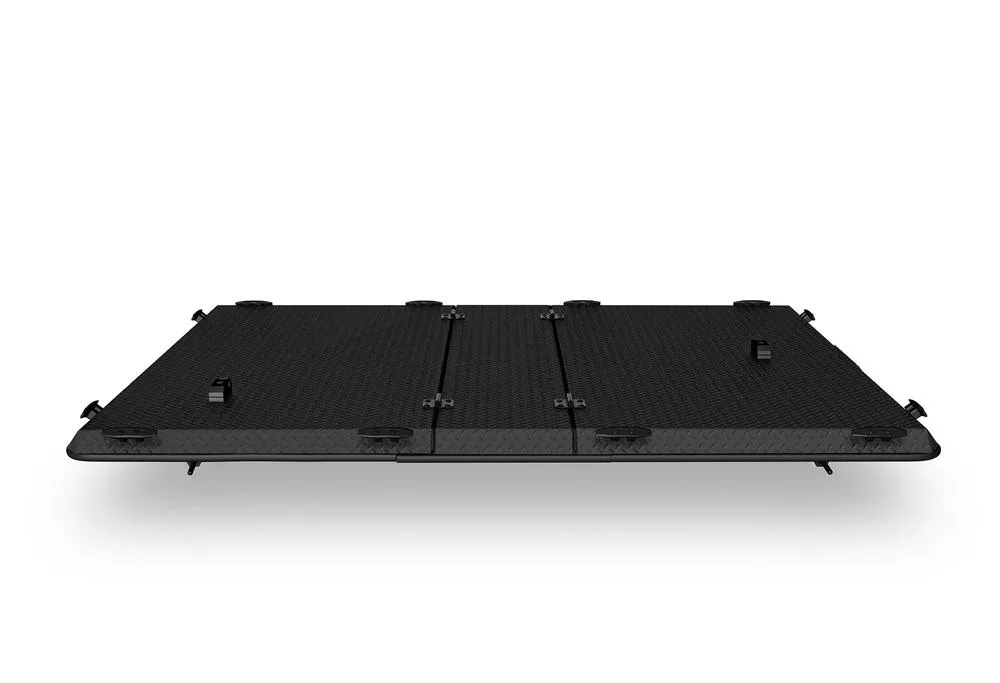

- Cab/Tailgate Panel: 33.375" | ~46 lb
- Center Panel: 12" | ~23 lbs
- Total Cover Weight: ~115 lb
Construction:
- .100" 3003 alloy aluminum grade
- 7 structural studs
- 12 tie-down cleats pre-installed
- Neoprene compression gasket
- Stainless steel hinges and external hardware
- 3/8" steel lock rods
- Die-cast zinc, keyed lock handles
- 5356 alloy TIG welds
In the Box:
- DiamondBack HD (assembly req’d)
- Gas springs (4)
- Cap clamps (2–4)
- Bulkhead weatherstrip (for most)
- 1/8" hex key
- Mounting brackets (0–2)
- Striker brackets (0–2)
Removal Time: 10 mins
